Crimp Contact

  • LEB CONNECTOR
Télécharger la fiche produit

Applicable Wire

  • 26 to 22 AWG
Article Number SLEB-001T-P0.2
Upper Temperature +105 °C
Lower Temperature -55 °C
General Description LED Connectors (4.0mm Pitch Disconnectable Crimp & Board to Board Style)
Applicable Wire Size 0.13 to 0.33 (AWG #26 to #22) mm²
Connection Type Printed Circuit Board Connectors
Pitch / Style 4.0 mm
Rated Current (ac/dc) 3 A
Rated Voltage (ac/dc) 300 V
Pcb Mount Style Surface Mount Technology (SMT)
Les propriétés diffèrent selon les variantes et sous-variantes

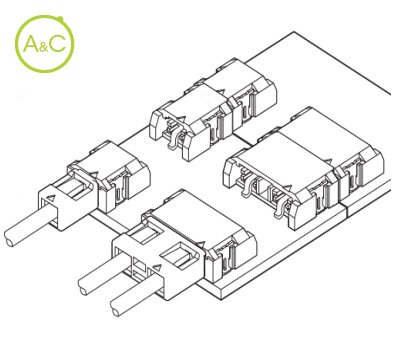

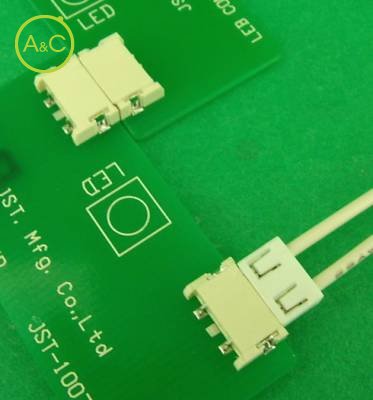

LED Connectors – The LEB Connector is a low profile wire-to-board, board-to-board connector that is designed for LED lighting applications. With a height of 2.7mm this surface mount connector is low profile and space saving, providing flexibility for various LED applications that require high performance connectors in tight spaces. The unique fork type contact provides a stable contact performance. This wire-to-board and board-to-board connector series is currently available in 1 and 2 circuits, rated at 3A AC, DC at 300V AC, DC. Absorption misalignment mechanism (only connector pitch direction) The PCB layout is in common with plug and receptacle connectors Mechanism for preventing wrong insertion Crimp type socket that is mated with receptacle connector is available Considering of JIS C 8121-2-2-2009 (IEC 60838-2-2-2006) [MiSCellaneous lamp holders - Part 2-2: Particular requirements - Connectors for printed circuit board based LED modules] But it is not completely corresponded RoHS Compliant
