Header for SFG Connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 5
| Article Number | SM05B-SFGH(HF) |
| Number Of Contacts | 5 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.1mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.1 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Rated Voltage (ac/dc) | 200 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Les propriétés diffèrent selon les variantes et sous-variantes

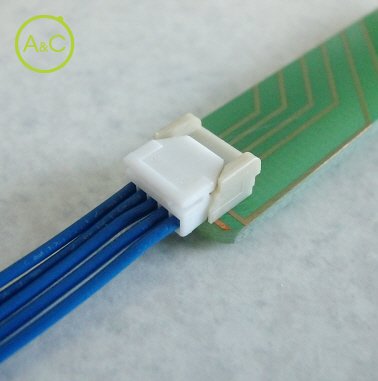

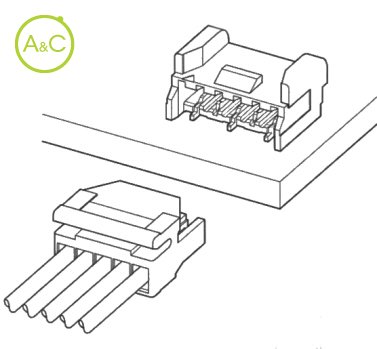

SFG Connector is a wire to board connector for connecting power supply to PCB and withstands high voltage. It is used for power supply of LED backlight in Liquid Crystal Display (LCD) Television sets.
Withstands high voltage
Secure lock
Halogen free
Tapered locking feature
EC Directive 2002/95/EC (the RoHS Directive) - Compliant
