Pin

  • SMF CONNECTOR
Télécharger la fiche produit

Shape

  • A
  • B
Article Number RT-01T-1.0B
Number Of Contacts 1
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description Single-Circuit Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style Single-Circuit mm
Rated Current (ac/dc) 5 A
Pcb Mount Style Through-hole Technology (THT)
Remark* Hole diameter: 1.0 mm
Les propriétés diffèrent selon les variantes et sous-variantes

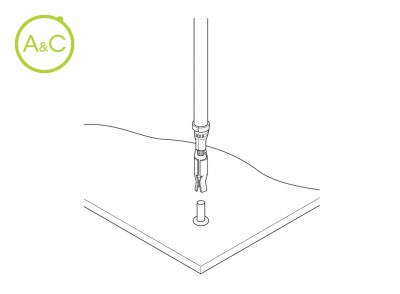

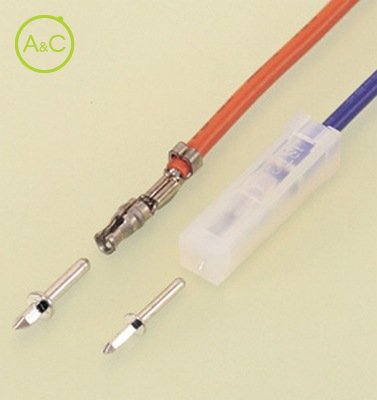

This small single-circuit connector connects to 1.0mm (.039") and 1.3mm (.051") diameter pins and requires only minimal space for connection of wires to high-density printed circuit boards. The SMF connector has a funnel shaped lead-in to ease insertion and to ensure a balance with its high retaining force. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
