Female Terminal AWG 26 to 10

HIT CONNECTOR

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

JST

Applicable Wire

AWG 12 to 10
AWG 14 to 12
AWG 20 to 18
AWG 22 to 20
AWG 24 to 22
AWG 26
Awg 18 to 16

Article Number	SNAC-A091T-M2.8
Upper Temperature	+100 °C
Lower Temperature	-40 °C
General Description	2.2mm Pitch Disconnectable Crimp Style
Applicable Wire Size	3.0 to 5.0 (AWG #12 to #10) mm²
Connection Type	Automotive
Pitch / Style	2.20 mm
Rated Current (ac/dc)	2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V

Article Number	SNAC-A081T-M2.8
Upper Temperature	+100 °C
Lower Temperature	-40 °C
General Description	2.2mm Pitch Disconnectable Crimp Style
Applicable Wire Size	2.0 to 3.3 (AWG #14 to #12) mm²
Connection Type	Automotive
Pitch / Style	2.20 mm
Rated Current (ac/dc)	2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V

Article Number	SNAC3-A031T-M0.64
Upper Temperature	+100 °C
Lower Temperature	-40 °C
General Description	2.2mm Pitch Disconnectable Crimp Style
Applicable Wire Size	0.5 to 0.85 (AWG #20 to #18) mm²
Connection Type	Automotive
Pitch / Style	2.20 mm
Rated Current (ac/dc)	2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V

Article Number	SNAC3-A021T-M0.64
Upper Temperature	+100 °C
Lower Temperature	-40 °C
General Description	2.2mm Pitch Disconnectable Crimp Style
Applicable Wire Size	0.3 to 0.5 (AWG #22 to #20) mm²
Connection Type	Automotive
Pitch / Style	2.20 mm
Rated Current (ac/dc)	2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V

Article Number	SNAC3-A011T-M0.64
Upper Temperature	+100 °C
Lower Temperature	-40 °C
General Description	2.2mm Pitch Disconnectable Crimp Style
Applicable Wire Size	0.22 to 0.35 (AWG #24 to #22) mm²
Connection Type	Automotive
Pitch / Style	2.20 mm
Rated Current (ac/dc)	2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V

Article Number	SNAC3-A001T-M0.64
Upper Temperature	+100 °C
Lower Temperature	-40 °C
General Description	2.2mm Pitch Disconnectable Crimp Style
Applicable Wire Size	0.13 (AWG #26) mm²
Connection Type	Automotive
Pitch / Style	2.20 mm
Rated Current (ac/dc)	2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V

Article Number	SNAC-A061T-M2.8
Upper Temperature	+100 °C
Lower Temperature	-40 °C
General Description	2.2mm Pitch Disconnectable Crimp Style
Applicable Wire Size	0.85 to 1.3 (AWG #18 to #16) mm²
Connection Type	Automotive
Pitch / Style	2.20 mm
Rated Current (ac/dc)	2.8/25 (5mm2, Single Circuit) 0.64/5 (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc)	14 V

Les propriétés diffèrent selon les variantes et sous-variantes

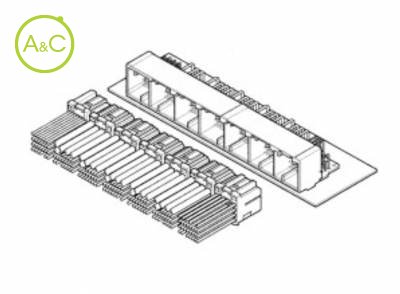

The HIT connector is multi-circuit and miniaturized for ECU for the automobile. Female connector is divided into seven housings, and considers the ergonomics and workability. Multi-circuit structure, Miniaturized Current products available are up to 180-circuit. Although this connector is multi-circuit, it was miniaturized by narrow pitch. The insertion force in the mating operation of one time is decreased by block diversion structure. Reliability It conforms to the automotive performance evaluation standard. Diversity It is hybrid structures of using 0.64mm(.025") and 2.8mm(.110") terminals. Large current circuit is also available. RoHS Compliant
