Male Terminal AWG 22 to 20
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Applicable Wire
- AWG 22 to 20
| Article Number | SNAC3W-A021GF-0.64 | SNAC3W-A021T-0.64 |
| Upper Temperature | +125 °C | +125 °C |
| Lower Temperature | -40 °C | -40 °C |
| General Description | 2.54mm Pitch Disconnectable Crimp Style | 2.54mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 0.35 to 0.5 (AWG #22 to #20) mm² | 0.35 to 0.5 (AWG #22 to #20) mm² |
| Connection Type | Automotive | Automotive |
| Pitch / Style | 2.54 mm | 2.54 mm |
| Rated Current (ac/dc) | 5 A | 5 A |
| Rated Voltage (ac/dc) | 14 V | 14 V |
| Remark* | Gold plated | Tin-plated |
Les propriétés diffèrent selon les variantes et sous-variantes

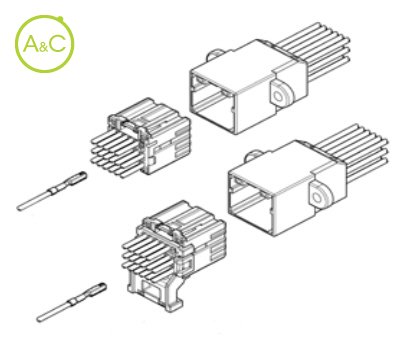

The ARV connector is an unsealed wire-to-wire high performance connector, primarily designed for outside rear view mirror applications. The 0.64-sized terminal offers optimum electrical performance and is available with gold plating, therefore offering excellent conductivity and durability.
This automotive connector is available in 12 and 18 circuits. The female housing is available with an optional unique back cover which allows wire routing. The male housing also offers the versatility in being able to be panel mounted.
12 circuits and 18 circuits, wire to wire connection
Optional wire routing attachment (to optimise packaging space)
Versatile mounting options
Latch overstress feature
Both female and male connectors utilise independent secondary lock for terminal retention
RoHS Compliant
