Terminal
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Applicable Wire
- AWG 24 to 20
| Article Number | SPF-01T-2.5C |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | Single-Circuit Disconnectable Crimp Style |
| Applicable Wire Size | 0.2 to 0.5 ( AWG #24 to #20) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | Single-Circuit mm |
| Rated Current (ac/dc) | 5 A |
| Pcb Mount Style | Through-hole Technology (THT) |
Les propriétés diffèrent selon les variantes et sous-variantes

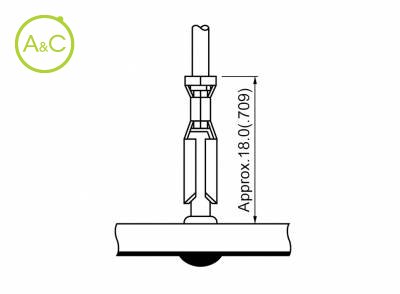

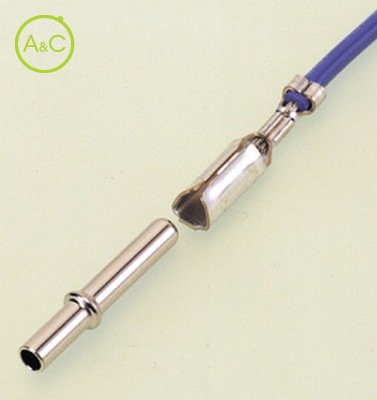

This terminal is used with 2.36mm (.093") diameter GT pins.
The SPF terminal has a large contact area, withstands stress caused by repeated insertions and removals, and provides excellent retaining force. It is best suited for circuit connections that require a large current.
RoHS Compliant
