Contact AWG 24 to 20

  • XAG CONNECTOR
Télécharger la fiche produit

Applicable Wire

  • General
  • AWG 24 to 20
Article Number SXA-01T-P0.6 SXAM-01T-P0.6
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
General Description 2.5mm Pitch Disconnectable Crimp Style (Wire to board) 2.5mm Pitch Disconnectable Crimp Style (Wire to wire)
Applicable Wire Size 0.22 to 0.5 (AWG #24 to #20) mm² 0.22 to 0.5 (AWG #24 to #20) mm²
Connection Type Printed Circuit Board Connectors Wire to Wire Connectors
Pitch / Style 2.50 mm 2.50 mm
Rated Current (ac/dc) 3 A 3 A
Rated Voltage (ac/dc) 250 V 250 V
Pcb Mount Style Surface Mount Technology (SMT)
Les propriétés diffèrent selon les variantes et sous-variantes

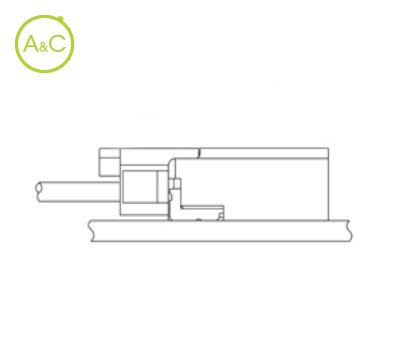

JST introduces the new XAG connector series, with a pitch size of 2.5mm. This connector series consists of plug and receptacle, which allow wire-to-wire configurations, and side entry SMT header assemblies, which offer wire to board connections. The plug housing features a side pincer lock mechanism to secure the mating into the receptacle/header. The wire-to-wire system has a panel lock mechanism making it possible to mount on the panel. These robust connectors are available with a secondary retainer to ensure the contacts are fully locked into the housing and prevent accidental release. Molded in a RoHS compliant PA6T Nylon (SMT Headers), the single row, crimp style connector series is available in 5 circuits. The XAG connector was orginally designed for Electronic Toll Collection (ETC) devices. An ETC is an on-board device that provides non-stop automatic expressway toll payment processing, which allows you to pass directly through the ETC lane at the tollbooth. Low profile Secure locking mechanism Retainer Panel locking mechanism RoHS Compliant
