Contact Awg 30 to 24

  • ZE CONNECTOR
Télécharger la fiche produit

Applicable Wire

  • AWG 28 to 24
  • AWGF 30 to 26
Article Number SZE-002T-P0.3
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.5mm Pitch Disconnectable Crimp Style
Applicable Wire Size 0.08 to 0.21 (AWG #28 to #24) mm²
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.50 mm
Rated Current (ac/dc) 2 A
Rated Voltage (ac/dc) 100 V
Pcb Mount Style Surface Mount Technology (SMT) Through-hole Technology (THT)
Les propriétés diffèrent selon les variantes et sous-variantes

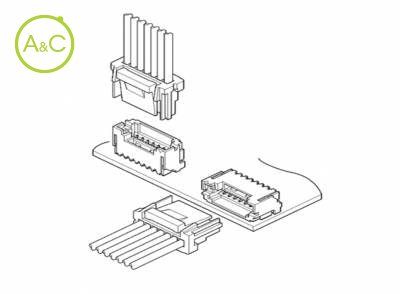

1.5mm pitch secure lock type connector. Fork-shaped header contact provides the good mating feeling and secure mating operation. RoHS Compliant
