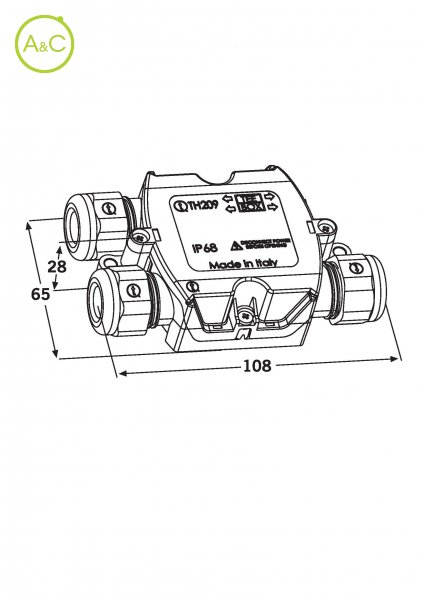

High protection Junction boxes empty and with terminal blocks

  • Waterproof
  • 3 cable glands
Télécharger la fiche produit

Protection Degree

  • IP54
  • IP68
Article Number THA.219.D1A THA.219.E1A
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
Inner Dimensions 54 mm x 40 mm x 24 mm 54 mm x 40 mm x 24 mm
Cable Diameter Min-max A 7,0 - 14,0 mm 7,0 - 9,5 mm
Cable Diameter Min-max B 7,0 - 14,0 mm 7,0 - 14,0 mm
Cable Entries/exits 3 ways 3 ways
Protection Degree Details 0,5 bar (5m/3h) 0,5 bar (5m/3h)
Body PA66 UL94 V2 GWT 850°C black - grey RAL 7035 PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Lock Nuts PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035 PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035
Grommets TPE-V TPE-V
Co-moulded Seal Of Lid SEBS SEBS
Fixing Screws Of Lid M3 x 12,0 mm inox stainless steel M3 x 12,0 mm inox stainless steel
Standards TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance
Note ∅ cable min-max 7,0 - 9,5 mm CH 19,0 mm ∅ cable min-max 7,0 - 14,0 mm CH 24,0 mm ∅ cable min-max 7,0 - 9,5 mm CH 19,0 mm ∅ cable min-max 7,0 - 14,0 mm CH 24,0 mm
Les propriétés diffèrent selon les variantes et sous-variantes
