Plug Housing Outer lock

  • VL CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 2
  • 3
  • 4
  • 6
  • 8
  • 12
Article Number VLP-02V-1
Number Of Contacts 2
Upper Temperature +90 °C
Lower Temperature -25 °C
General Description 6.2mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type Printed Circuit Board Connectors
Pitch / Style 6.20 mm
Rated Current (ac/dc) 20 A
Rated Voltage (ac/dc) 600 V
Pcb Mount Style Through-hole Technology (THT)
Typical Application Washing Machines
Remark* /
Les propriétés diffèrent selon les variantes et sous-variantes

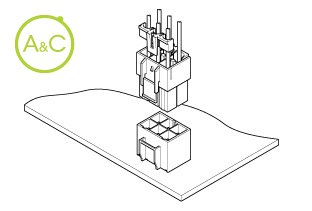

Designed for circuits with high power requirements. The VL connectors can be used for wire-to-wire or wire-to-board connections. For use in washing machines. The inter-housing lock secures the plug to the receptacle and prevents accidental diSConnection. Secondary retainers (optional). Housing lances for contact retention Since the contact retention lances are part of the housing rather than protruding from the contact, they cannot be damaged by handling. They allow the contact to be easily inserted and securely locked into the housing. Secondary retainer The secondary retainer is optionally available. This retainer ensures that the contacts are fully seated and locked in the housing and prevents their accidental release. Installed after the contacts are inserted, the secondary retainer locks and secures the contacts. Suited for large current Since these contacts have large cross-sectional areas and high contact pressure, they can accommodate large current. Two kinds of connections The VL connectors can be used for wire-to-wire or wire-to-board connections. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R9351103 RoHS Compliant
