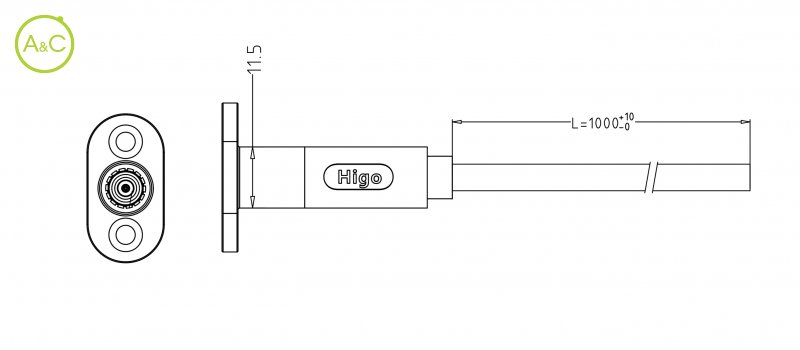

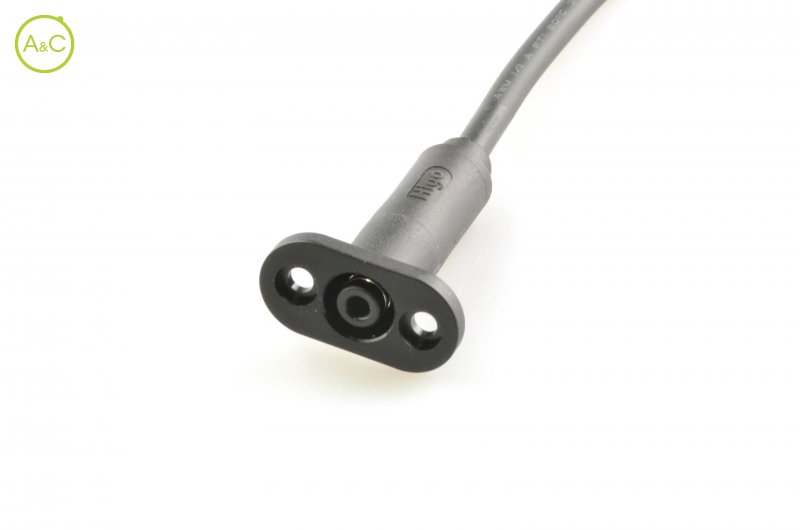

Female panel mount connector

Number Of Poles

  • 2
Article Number Z212AM P 00 BW 1000
Color Black
Connector Diameter 11.5 mm
Wire Section 2 x 18AWG mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor Bronze
Insulation Wire PVC
Remark * Other cable length/type on request
Rated Current 8 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 30 mm
Material Jacket TPU
Les propriétés diffèrent selon les variantes et sous-variantes
