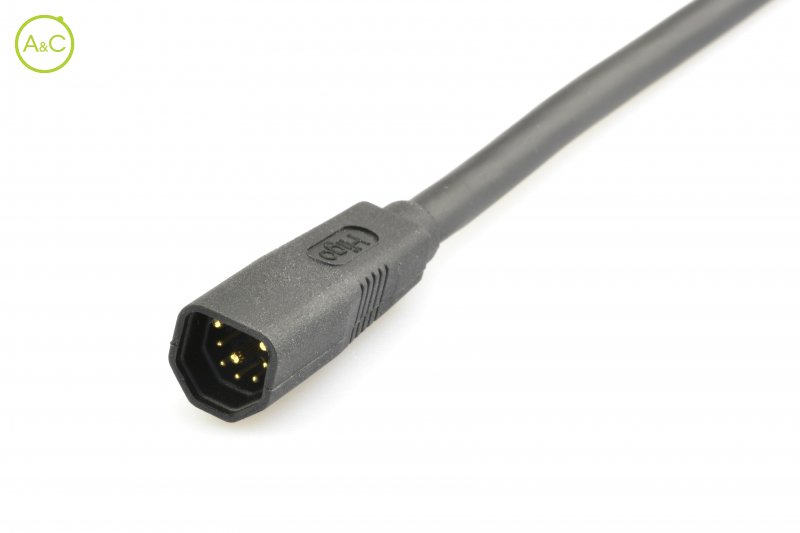

Male cable connector

Number Of Poles

  • 9 (3+6)
Article Number Z913BG P 00 AF 1000
Color Black

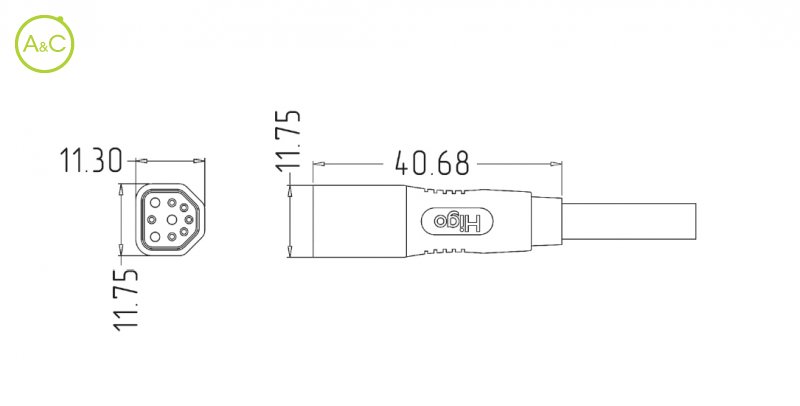

Connector Diameter 11,75 x 11,30 mm
Wire Section 3 x 1,5 + 6 x 0,14 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Cable Diameter 5.8 mm
Insulation Wire PVC
Remark * Other cable length/type on request
Rated Current 15 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 70.7 mm
Material Jacket PVC
Les propriétés diffèrent selon les variantes et sous-variantes
