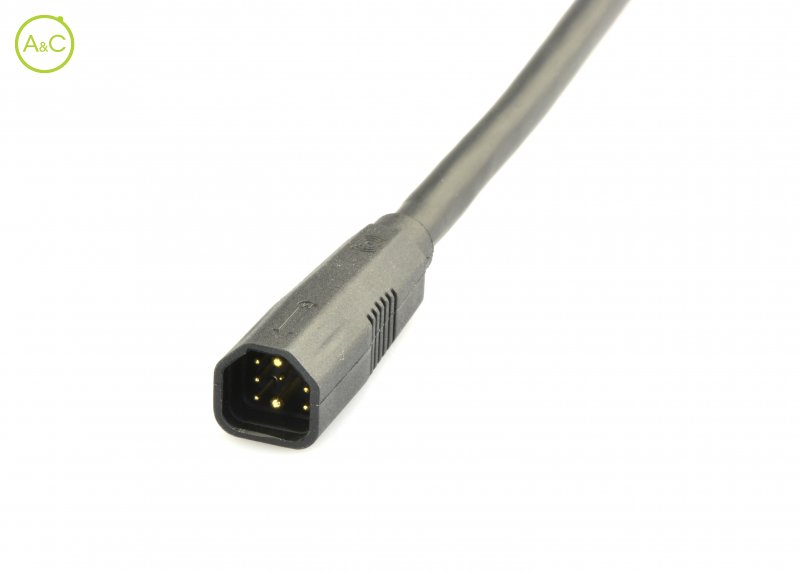

Male cable connector

Number Of Poles

  • 9 (2+7)
Article Number Z913CG P 00 FA 0000
Color Black

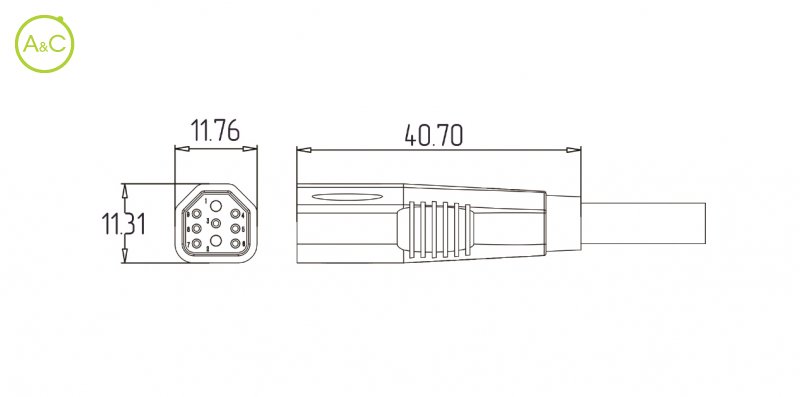

Connector Diameter 11,30 x 11,75 mm
Wire Section 2 x 1,5 + 7 x 0,15 mm²
Cable Length 1000 mm
Protection Degree IPX7
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Cable Diameter 5.8 mm
Insulation Wire FEP
Remark Other cable length/type on request
Rated Current 15 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 71 mm
Material Jacket PVC
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
