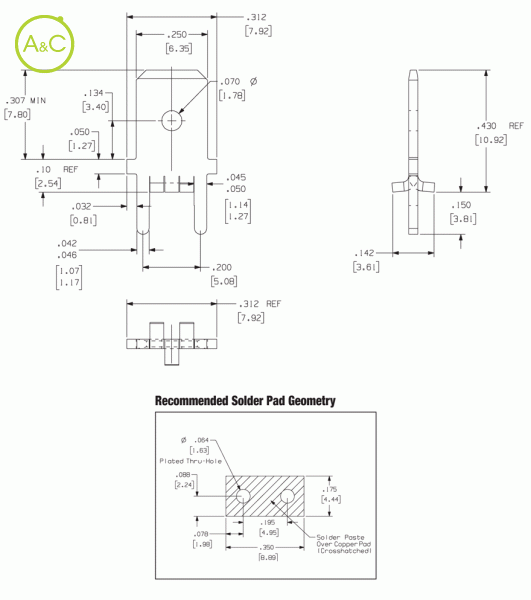

0.250" (6.35mm) Tabs / Quick Disconnect Terminals

  • Straight, 14.73 mm high
  • General
Article Number 6284
Packaging Reeled
Extra Description Straight, 14.73 mm high
Hole Dimension 0.070" (1.78mm) hole
Material Thickness / Type 0.032" (0.81mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating Ul 25 Amperes
Current Rating C-ul 25 Amperes
Ul File Number E146208
Applicator System Model 9700, Model 9700 XY
Pieces Per Reel (reeled Part No.) 2500
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
