Female Connector for FZ Connector

  • FZ CONNECTOR
Download Datenblatt

Number Of Poles

  • 5
  • 6
  • 8
  • 10
  • 11
  • 12
  • 13
  • 14
  • 16
  • 20
  • 24
Article Number 05FZ-SM1-GAN-TB
Number Of Contacts 5
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.4mm Pitch Non-ZIF Connector for FPC
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.40 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

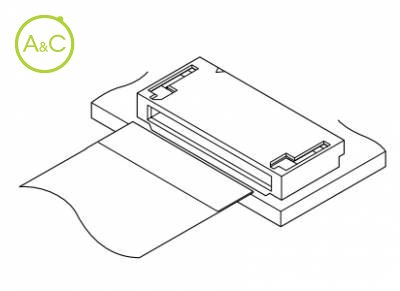

This is a very small surface mount type Non-ZIF 0.4mm pitch connector with a height of 1.0mm and depth of 3.0mm. Double-sided contact structure RoHS Compliant
