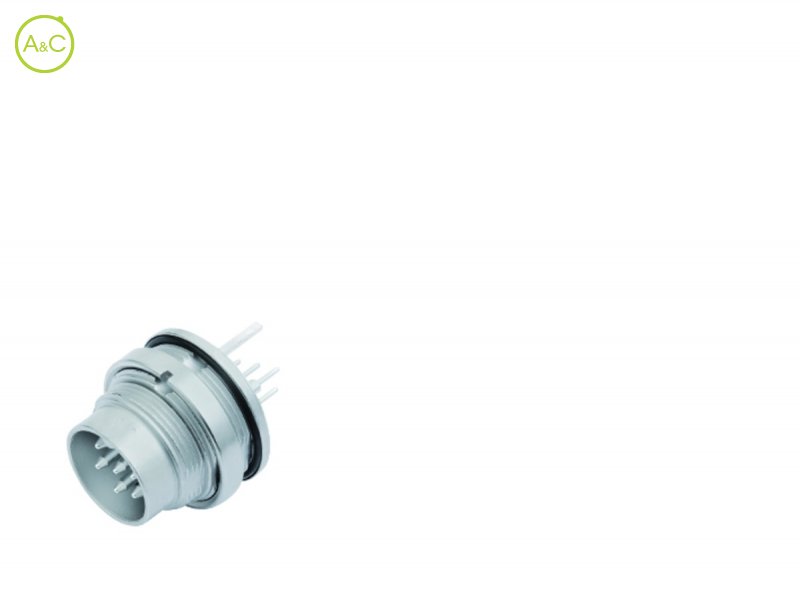

Male panel mount connector

  • Dip solder, front fastened, with shield connection

Number Of Poles

  • 4
  • 5
  • 6 DIN
  • 8 DIN
  • 12
  • 19
Article Number 09 0111 290 04
Connector Diameter 20 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M16)
Termination Dip solder
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +95 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 1500 V
Pollution Degree 1
Overvoltage Categorie I
Material Group III
Rated Current (40°) 6 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuZn (Brass)
Material Of Insert PBT
Material Of Housing Brass nickel plated / zinc diecasting nickel plated
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
