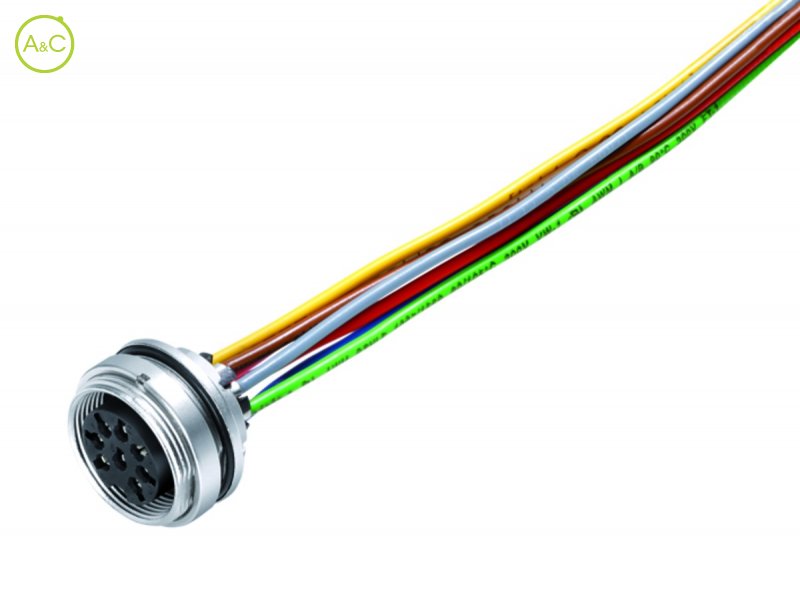

Female panel mount connector

  • With single wires, front fastened
  • UL-approval

Number Of Poles

  • 4
  • 5
  • 6 DIN
  • 7
  • 8 DIN
Article Number 09 0112 782 04
Connector Diameter 20 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M16)
Termination Strands
Wire Section 0.75 mm²
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +85 °C
Lower Temperature -30 °C
Rated Voltage 300
Rated Impuls Voltage 1500 V
Pollution Degree 1
Overvoltage Categorie I
Material Group II
Rated Current (40°) 5 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuSn (Bronze)
Plating Ag (Silver)
Material Of Insert PBT (UL 94 V-0)
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
