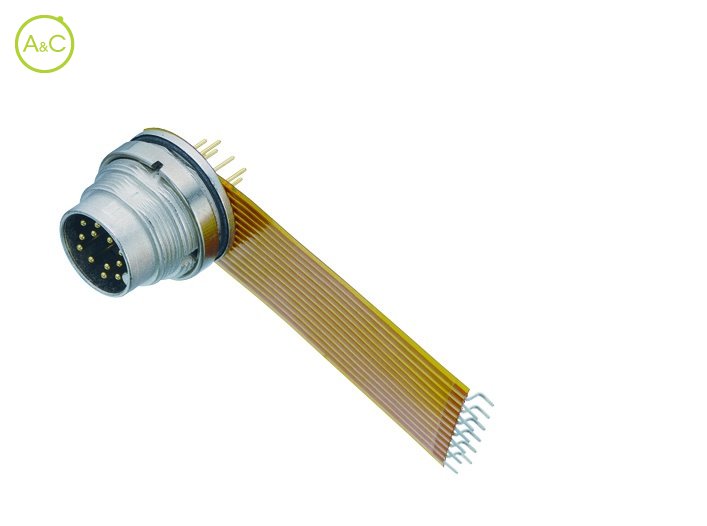

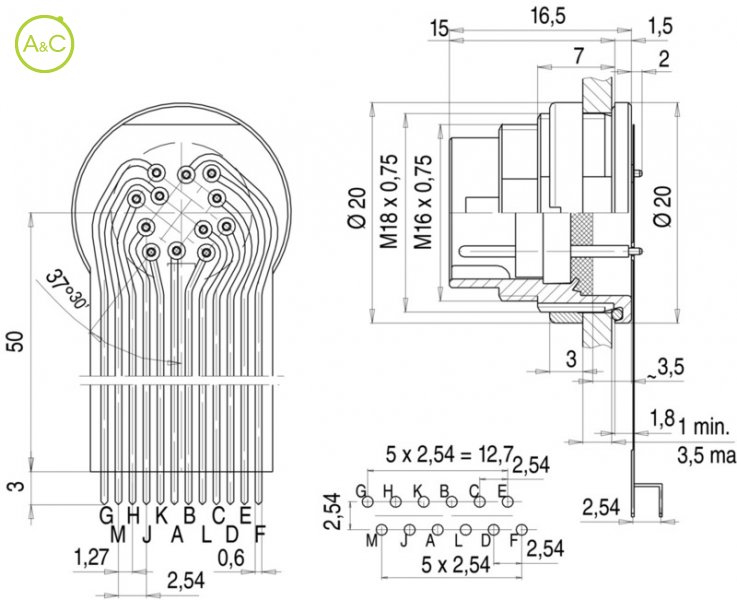

Male panel mount connector

  • With flexible PCB staggered pin layout, front fastened

Number Of Poles

  • 12
Article Number 09 0131 68 12
Connector Diameter 20 mm
Number Of Contacts 12 contacts
Connector Locking System Screw (M16)
Termination Dip solder
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +95 °C
Lower Temperature -40 °C
Rated Voltage 60 (32)
Rated Impuls Voltage 500 V
Pollution Degree 1 (2)*
Overvoltage Categorie I (II)*
Material Group III
Rated Current (40°) 3 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PBT (UL 94 V-0)
Material Of Housing Zinc diecasting nickel plated
Remark * *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
