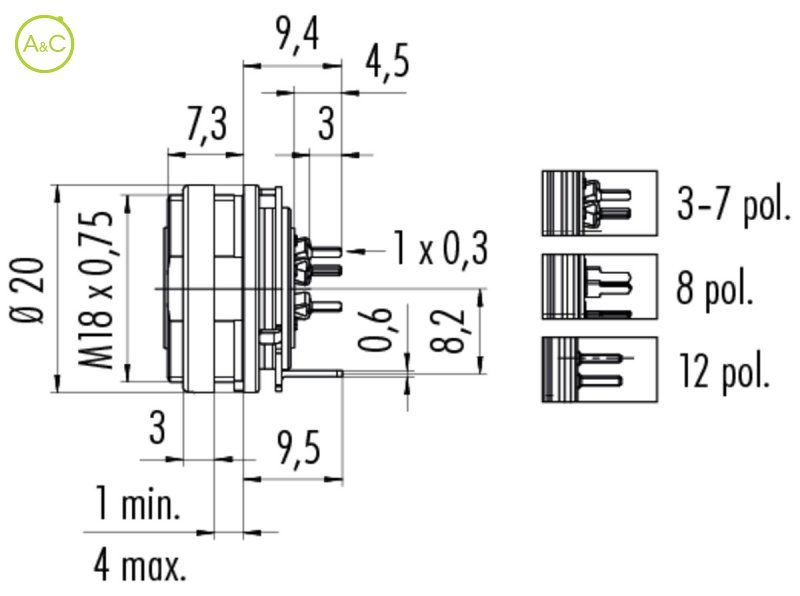

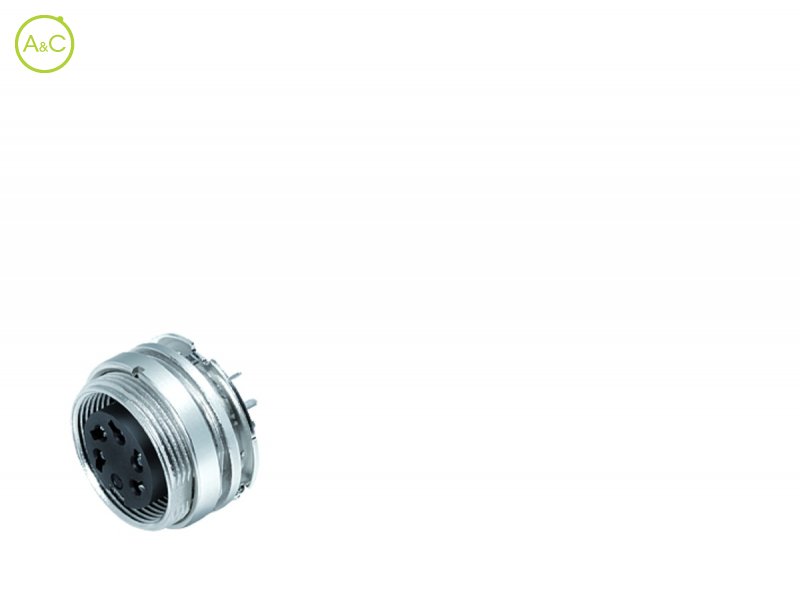

Female panel mount connector

  • With mass contact

Number Of Poles

  • 3 DIN
  • 4
  • 5
  • 6 DIN
  • 7
  • 8 DIN
  • 12
Article Number 09 0308 290 03
Connector Diameter 20 mm
Number Of Contacts 3 DIN contacts
Connector Locking System Screw (M16)
Termination Dip-solder
Protection Degree IP40
Mating Cycles >500 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 1500 V
Pollution Degree 1
Overvoltage Categorie I
Material Group III
Rated Current (40°) 7 A
Max. Contact Resistance 5 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PBT (UL 94 V-0)
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
