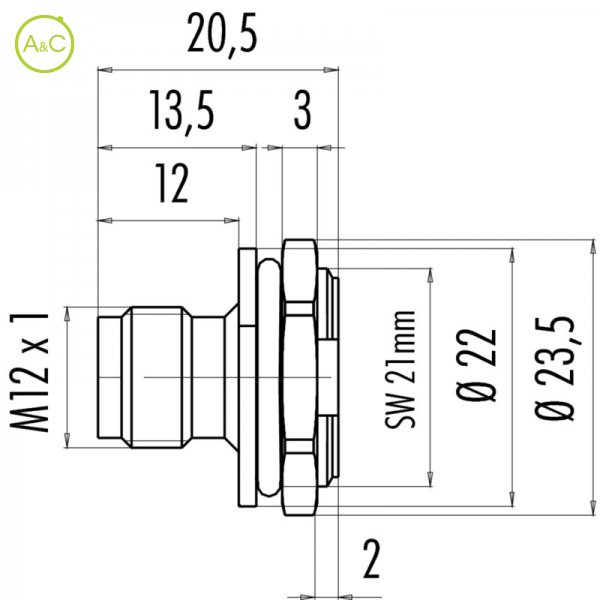

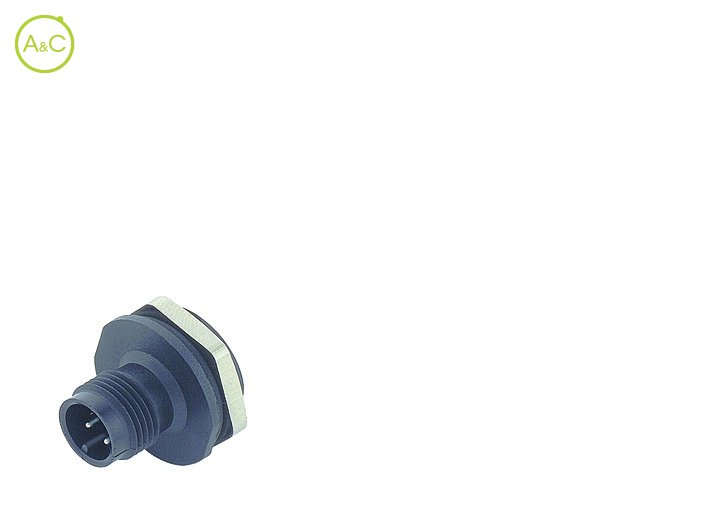

Male panel mount connector

  • Fixing thread

Number Of Poles

  • 4
  • 5
Article Number 09 0435 87 04
Connector Diameter 23.5 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-A)
Termination Solder
Wire Section 0.25 mm²
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing PA
Fixing Thread PG 11
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
