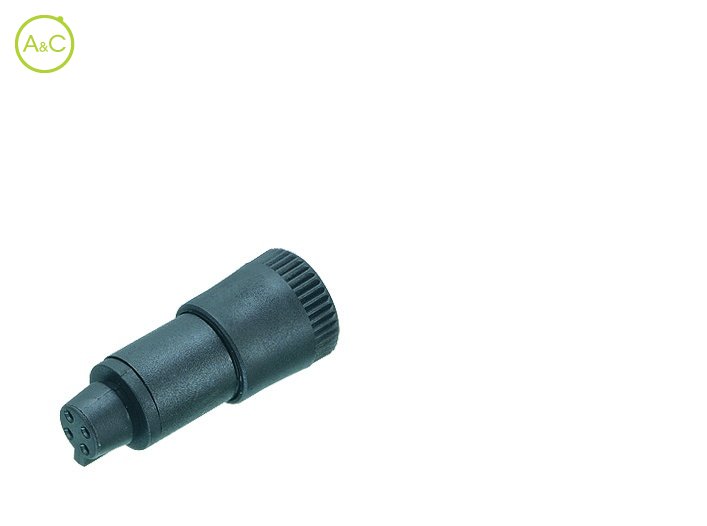

Female cable connector

  • With strain relief

Number Of Poles

  • 3
  • 4
  • 5
Article Number 09 9748 70 03 09 9748 71 03

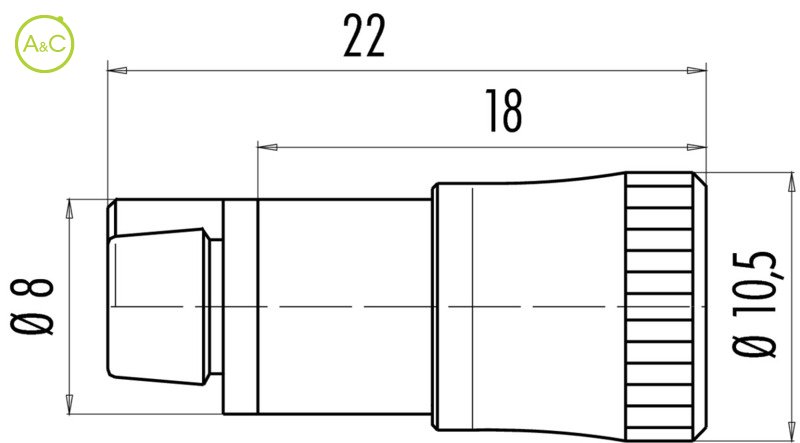

Connector Diameter 10.5 mm 10.5 mm
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Snap-in Snap-in
Termination Solder Solder
Wire Section 0.25 mm² 0.25 mm²
Protection Degree IP40 IP40
Mating Cycles >100 times >100 times
Upper Temperature +70 °C +70 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 60 60
Rated Impuls Voltage 800 V 800 V
Pollution Degree 1 1
Overvoltage Categorie II II
Material Group III III
Rated Current (40°) 3 A 3 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze) CuSn (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Material Of Housing PA PA
Cable Outlet 4 mm 5 mm
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
