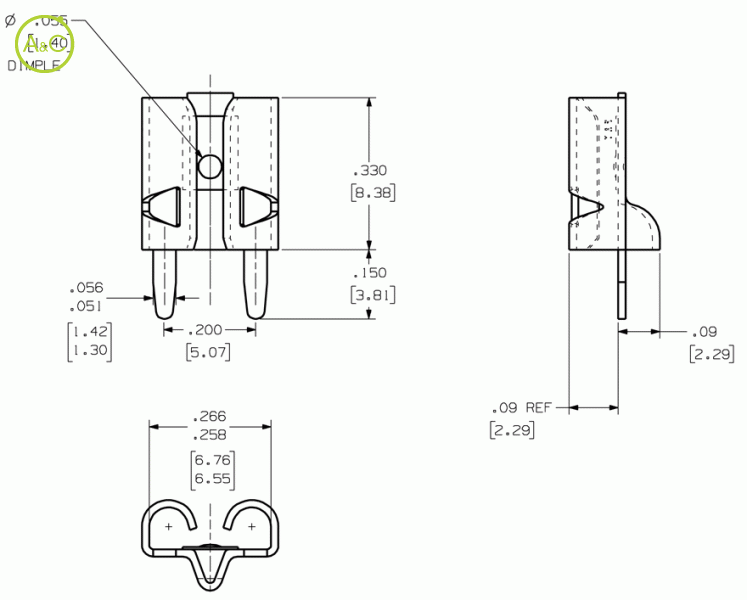

0.205" (5.21mm) and 0.250" (6.35mm) Tab Receptacles

  • Mating type Vertical
  • With dimple 1,40 mm

Packaging

  • Loose
  • Reeled
Article Number 1022 1037 1123
Remark With brass Tab With brass Tab With brass Tab
Extra Description With dimple 1,40 mm With dimple 1,40 mm With dimple 1,40 mm
Mating Terminal Size 0.250" x 0.032" (6.35mm x 0.81mm) Tab* 0.205" x 0.032" (5.21mm x 0.81mm) Tab* 0.250" x 0.032" (6.35mm x 0.81mm) Tin/Brass - Tab - (Low Insertion Force) 0.205" x 0.032" (5.21mm x 0.81mm) Tin/Brass - Tab - (Low Insertion Force) 0.250" x 0.025" (6.35mm x 0.63mm) Tin/Non-Brass - Relays or Fuses - Dual/Multiple Mating 0.205" x 0.025" (5.21mm x 0.64mm) Tin/Non-Brass - Relays or Fuses - Dual/Multiple Mating
Material Thickness / Type 0.016" (0.41mm) C26000 Brass 0.016" (0.41mm) C26000 Brass 0.016" (0.41mm) C26000 Brass
Standard Finish 100% Tin over Copper 100% Tin over Copper 100% Tin over Copper
Current Rating 20 Amperes* 20 Amperes* 20 Amperes*
Applicator System Loose: ZPT81-A Reeled: Model 9700, 9700 XY Loose: ZPT81-A Reeled: Model 9700, 9700 XY Loose: ZPT81-A Reeled: Model 9700, 9700 XY
Mounting Type Outward or Inward Splay Outward or Inward Splay Outward or Inward Splay
Mounting Hole Diameter 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers
Resistance Rating 10mOhm Max 10mOhm Max 10mOhm Max
Mating Entry Top Top Top
Temperature Rating -65° to 85°C -65° to 85°C -65° to 85°C
Pieces Per Reel (loose Part No.) NA NA NA
Pieces Per Reel (reeled Part No.) / / /
Datenblatt Download Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
