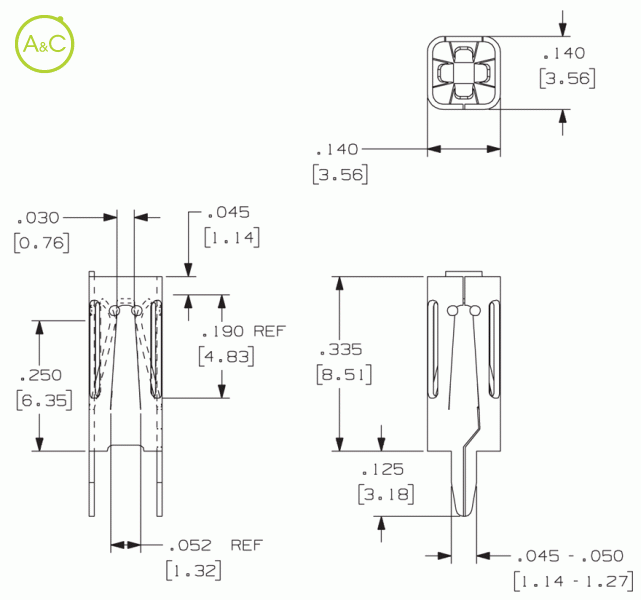

Bottom Entry 4 Beam Box Receptacles

  • Mating terminal size is 1,14-1,52 mm

Packaging

  • Loose
  • Reeled
Article Number 1062
Extra Description Mating terminal size is 1,14-1,52 mm
Mating Terminal Size 0.045" (1.14mm) and 0.060" (1.52mm) Rd. or Sq.
Material Thickness / Type 0.010" (0.25mm) C51000 Phosphor Bronze
Standard Finish 100% Tin over Copper
Current Rating Ul 10 Amperes
Current Rating C-ul 10 Amperes
Ul File Number E361770
Applicator System Reeled: Model 9700, 9700 XY
Mating Type Vertical
Mounting Type Outward Splay
Mounting Hole Diameter 0.150" ±0.003" (3.81mm ±0.076mm)
Resistance Rating 10mOhm Max
Mating Entry Bottom
Temperature Rating -65° to 105°C
Insertion Force-max. Application Dependent / Submit Mating Terminal Sample to Factory.
Withdrawal Force-max. Application Dependent / Submit Mating Terminal Sample to Factory.
Pieces Per Reel (loose Part No.) NA
Pieces Per Reel (reeled Part No.) /
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
