Test Point Terminals

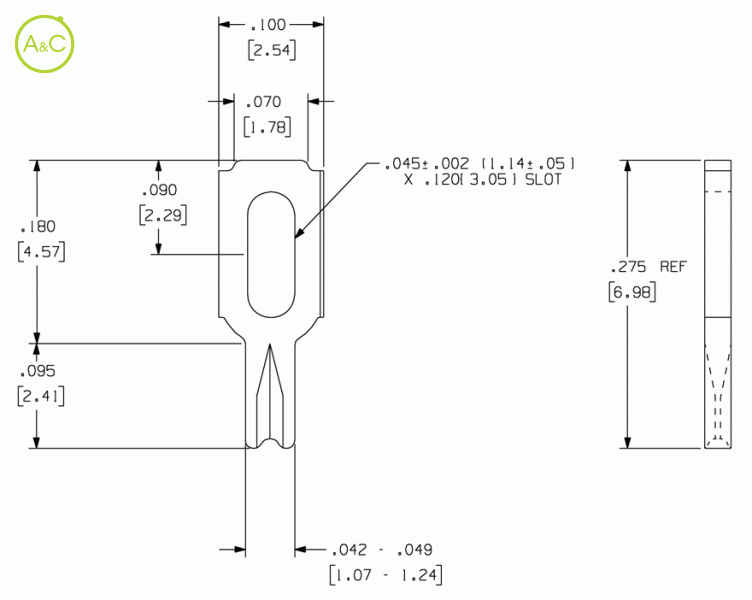

  • Terminal height is 6,98 mm

Packaging

  • Loose
  • Reeled
Article Number 1069
Extra Description Terminal height is 6,98 mm
Material Thickness / Type 0.025" (0.64mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating 10 Amperes
Applicator System Loose: ZPT81-TP Reeled: Model 9700, 9700 XY
Mounting Type Split Leg Splay
Mounting Hole Diameter 0.055" ±0.003" (1.40mm ±0.076)
Pieces Per Reel (loose Part No.) NA
Pieces Per Reel (reeled Part No.) /
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
