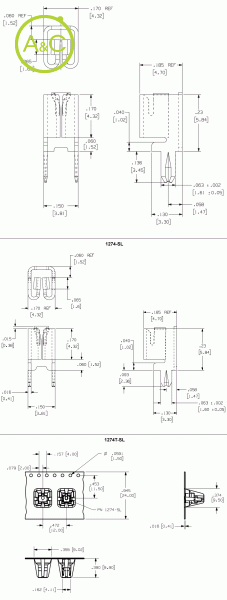

Universal Tab Receptacles for 0.025" (0.64mm) and 0.032" (0.81mm) Thick Terminals

  • Mating type top and horizontal
  • Mounting type is Split leg Inward Splay

Packaging

  • Loose
  • Reeled
  • Taped
Article Number 1092 1274 1274-SL
Extra Description Mounting type is Split leg Inward Splay Mounting type is Split leg Inward Splay Mounting type is Split leg Inward Splay
Mating Terminal Size 0.025" (0.64mm) and 0.032" (0.81mm) 0.020" (0.51mm) and 0.032" (0.81 mm) 0.020" (0.51mm) and 0.032" (0.81 mm)
Material Thickness / Type 0.016" (0.41mm) C26000 Brass 0.016" (0.41mm) C26000 Brass 0.016" (0.41mm) C26000 Brass
Standard Finish 100% Tin over Copper 100% Tin over Copper 100% Tin over Copper
Current Rating 20 Amperes 20 Amperes 20 Amperes
Applicator System Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY
Mounting Type Split Leg Inward Splay Split Leg Inward Splay Split Leg Inward Splay
Resistance Rating 10mOhm Max 10mOhm Max 10mOhm Max
Mating Entry Top and Horizontal Top and Horizontal Top and Horizontal
Temperature Rating -65° to 85°C -65° to 85°C -65° to 85°C
Pieces Per Reel (loose Part No.) NA NA NA
Pieces Per Reel (reeled Part No.) / / /
Pieces Per Reel (taped Part No.) / / /
Datenblatt Download Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
