Housing for SZN Connector

  • SZN CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
Article Number 10P-SZN
Number Of Contacts 10
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.5mm Pitch Board-in Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.50 mm
Rated Current (ac/dc) 0.7 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Through-hole Technology (THT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

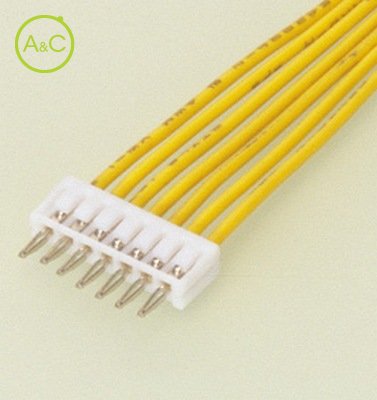

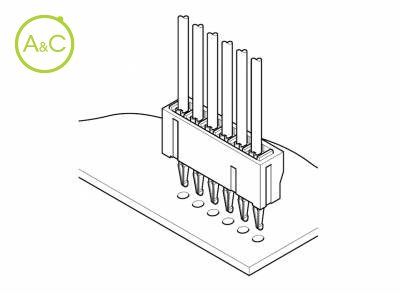

This low-profile, board-in connector, with a mounting height of only 4.25mm (.167") and a thickness of 2.4mm (.094"), is soldered directly onto printed circuit boards. The solder tail of the contact is resilient for easy assembly. The housing lances facilitate insertion of contacts. Slim, low-profile design The SZN connector features a mounting height of just 4.25mm (.167") and a thickness of 2.4mm (.094"). Housing lances The lances on the resilient housing ensure easy insertion and secure locking of the contact into the housing. Easy mounting onto printed circuit boards The solder tail of the contact is resilient so as to ensure easy assembly and provide a secure lock of the connector in the printed circuit board prior to soldering. Rugged contact construction The spring members of the resilient solder tail are joined together at the tip to prevent opening or deformation and to ensure easy handling. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
