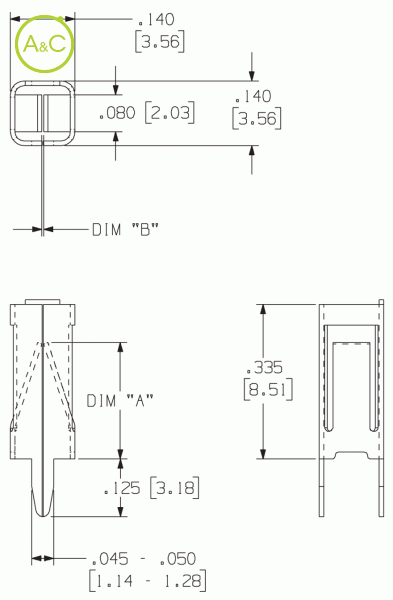

Bottom Entry 2 Beam Box Receptacles

Packaging

  • Loose
  • Reeled
Article Number 1193 1200
Dim A 0.200" (5.08mm) 0.250" (6.35mm)
Dim B 0.015" (0.38mm) 0.003" (0.07mm)
Mating Terminal Size 0.025" to 0.095" (0.64mm to 2.41mm) round or square and 0.032" x 0.110" Blade 0.025" to 0.095" (0.64mm to 2.41mm) round or square and 0.032" x 0.110" Blade
Material Thickness / Type 0.010" (0.25mm) C51000 Phosphor Bronze 0.010" (0.25mm) C51000 Phosphor Bronze
Standard Finish 100% Tin over Copper 100% Tin over Copper
Current Rating Ul 10 Amperes 10 Amperes
Current Rating C-ul 10 Amperes 10 Amperes
Ul File Number E361770 E361770
Applicator System Reeled: Model 9700, 9700 XY Reeled: Model 9700, 9700 XY
Taperesist™ Optional (6193-TR) Optional (6193-TR)
Mating Type Vertical Vertical
Mounting Type Outward Splay Outward Splay
Mounting Hole Diameter 0.150" ±0.003" (3.81mm ±0.076mm) 0.150" ±0.003" (3.81mm ±0.076mm)
Resistance Rating 10mOhm Max 10mOhm Max
Mating Entry Bottom Bottom
Temperature Rating -65° to 105°C -65° to 105°C
Insertion Force-max. Application Dependent / Submit Mating Terminal Sample to Factory. Application Dependent / Submit Mating Terminal Sample to Factory.
Withdrawal Force-max. Application Dependent / Submit Mating Terminal Sample to Factory. Application Dependent / Submit Mating Terminal Sample to Factory.
Pieces Per Reel (loose Part No.) NA NA
Pieces Per Reel (reeled Part No.) / /
