Female Connector for FXR Connector

  • FXR CONNECTOR
Download Datenblatt

Number Of Poles

  • 11
  • 13
  • 15
  • 17
  • 19
  • 21
  • 23
  • 25
  • 27
  • 29
  • 31
  • 33
  • 35
  • 37
  • 39
  • 45
  • 47
  • 51
  • 61
Article Number 11FXR-RSM1-GAN-TB
Number Of Contacts 11
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.3mm Pitch ZIF Connector for FPC
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.30 mm
Rated Current (ac/dc) 0.2 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

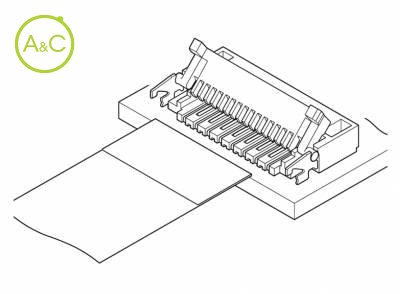

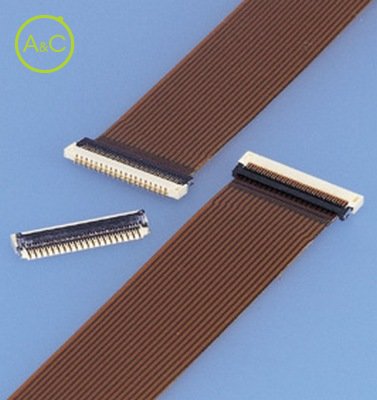

With a height of just 1.0mm, this 0.3mm pitch FPC connector is very low profile, which makes it an ideal connector for small applications such as mobile phones and MP3 players etc. Featuring a ZIF (Zero Insertion Force) mechanism, and using heat resistant material, this connector is also easy to use and more than suitable for the high re-flow temperatures associated with lead free soldering. Ultra low profile and ZIF mechanism 1.0mm (.039") height ultra low profile connector. A ZIF (zero insertion force) mechanism, which increases FPC insertion workability, wear resistance and extends the connector's mating life, is adopted. Space saving design Compared to the conventional 0.3mm (.012") pitch connector, mounting surface of connector is extremely reduced with 3.8mm (.150") depth, but maintain equivalent performance. Heat resistant design for surface mounting application The housing is made of heat resistant resin to allow reflow soldering. RoHS Compliant
