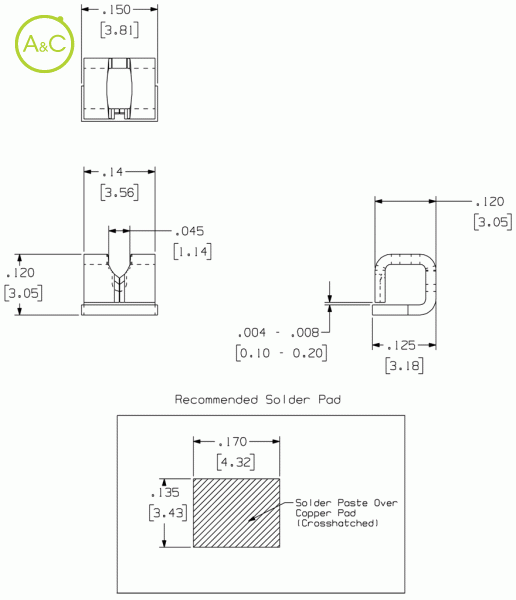

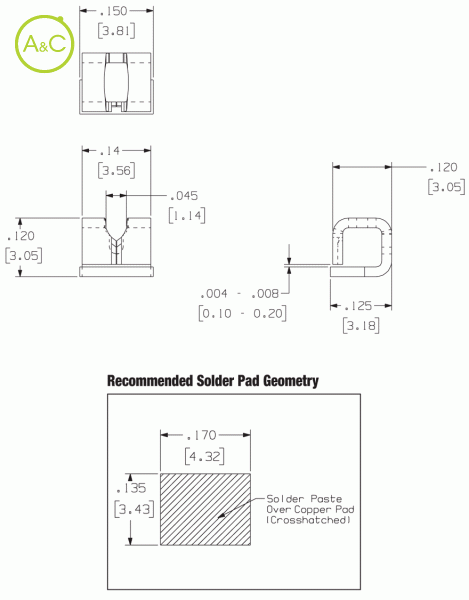

SMT Insulation Displacement Connectors
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Zierick
Zierick
Packaging
- Loose
- Small reeled
- Taped
| Article Number | 1235 |
| Extra Description | AWG 26-30 |
| Material Thickness / Type | 0.020" (0.51mm) C26000 Brass |
| Standard Finish | 100% Tin over Copper |
| Current Rating Ul | AWG 30 solid & stranded 2.2 amperes AWG 28 solid & stranded 3.0 amperes AWG 26 solid & stranded 4.0 amperes |
| Current Rating C-ul | AWG 30 solid & stranded 2.2 amperes AWG 28 solid & stranded 3.0 amperes AWG 26 solid & stranded 4.0 amperes |
| Feeder System | Standard 12mm Tape Feeder |
| Ul File Number | E361770 |
| Wire Gauge Range | #26-30 AWG |
| Wire Insertion Tool | WTPPS-1235-1: Pnuematic Production Tool |
| Pieces Per Reel (loose Part No.) | NA |
| Pieces Per Reel (taped Part No.) | / |
| Pieces Per Reel (small Reel Part No.) | / |
| Datenblatt | Download Datenblatt |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
