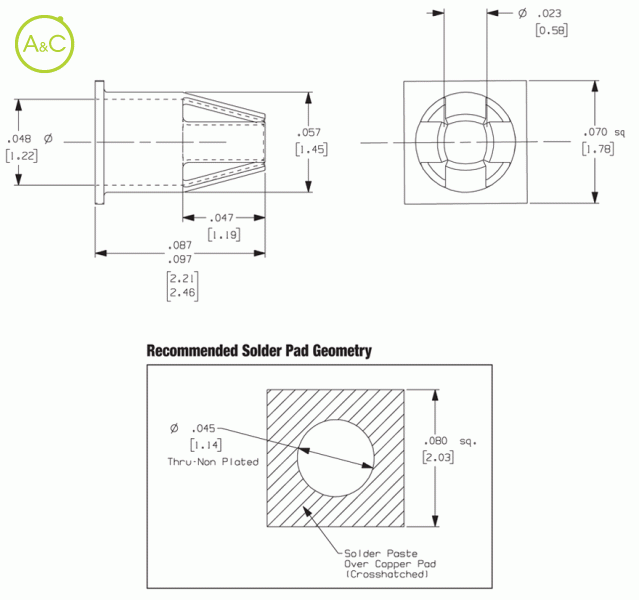

SMT Bottom Entry Through-Board Sockets

  • square based socket

Packaging

  • Loose
  • Taped
Article Number 1260-SQ
Extra Description square based socket
Mating Pin Size 0.025" (0.64mm) Square or 0.025" (0.64mm) to 0.032" (0.81mm) Diameter Round Pins
Material Thickness / Type 0.005"(0.13mm) C17200 Beryllium Copper
Standard Finish 100% Bright Tin over Copper
Current Rating 7 Amperes
Feeder System Standard 16mm Tape Feeder for Taped Parts
Pieces Per Reel (loose Part No.) NA
Pieces Per Reel (taped Part No.) /
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
