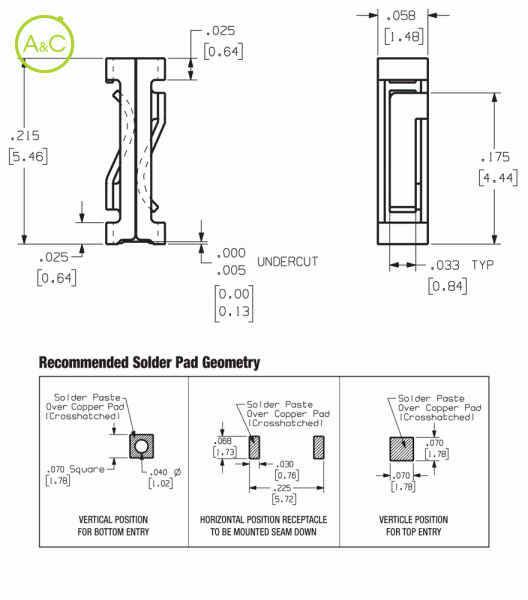

SMT Vertical or Horizontal Box Receptacles

Packaging

  • Loose
  • Small reeled
  • Taped
  • reeled
Article Number 1277
Mating Terminal Size 0.025" (0.64mm) square or round pin
Material Thickness / Type .008" (0.20mm) C51000 Phosphor Bronze
Standard Finish 100% Tin over Copper
Current Rating Ul 10 Amperes
Current Rating C-ul 10 Amperes
Feeder System Loose: Standard 16mm Tape Feeder for PN 1277-TH Standard 24mm Tape Feeder for PN 1277-TV-G Standard 16mm Tape Feeder for PN 1277-TV-N Reeled: Consult Factory for Feeder
Ul File Number E361770
Pieces Per Reel (loose Part No.) NA
Pieces Per Reel (reeled Part No.) /
Pieces Per Reel (taped Part No.) /
Pieces Per Reel (small Reel Part No.) /
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
