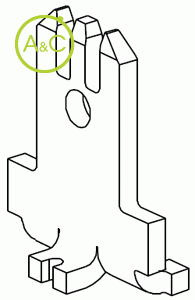

SMT Tabs / Quick Disconnect Terminals 0.187" (4.75mm)

Packaging

  • Loose
  • Reeled
Article Number 1278

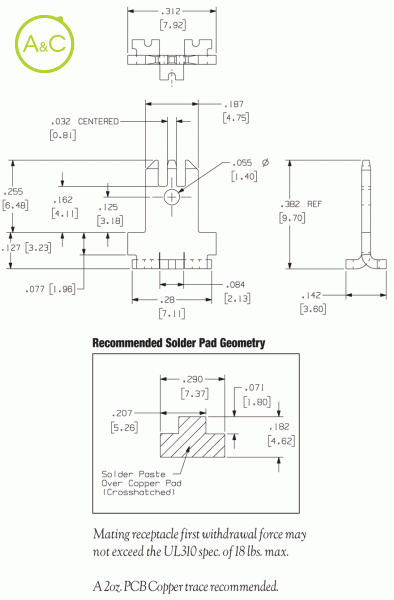

Hole Dimension 0.055" (1.40mm)
Material Thickness / Type 0.032" (0.81mm) C26000 Brass
Standard Finish Loose: 100% Tin over Copper Reeled: 100% Tin over Copper
Current Rating Ul 20 Amperes
Feeder System Surf-Shooter SMT ™ Continuous Strip Feeder
Ul File Number E146208
Pieces Per Reel (loose Part No.) NA
Pieces Per Reel (reeled Part No.) /
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
