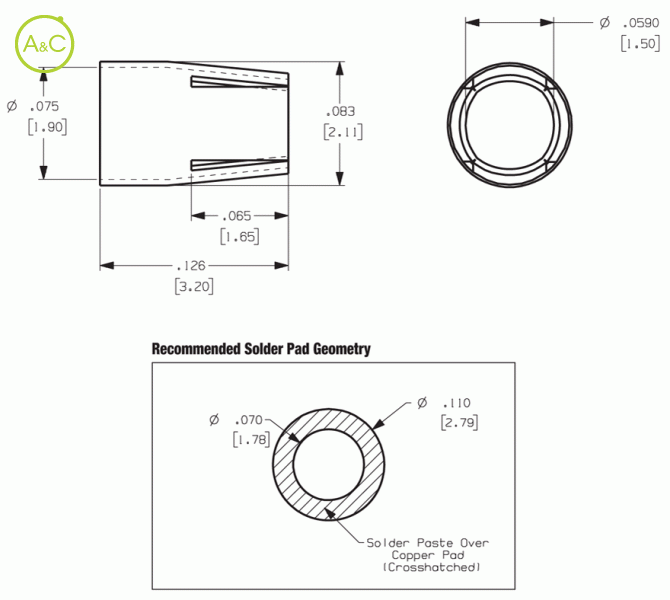

SMT Bottom Entry Through-Board Sockets

Mating pin size is 1,57-1,68 mm

1279

1279

1279

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Packaging

Loose
Small reeled
Taped

Article Number	1279
Extra Description	Mating pin size is 1,57-1,68 mm
Mating Pin Size	0.062–0.066" (1.57–1.68mm) Diameter Round Pins
Material Thickness / Type	0.005"(0.13mm) C17200 Beryllium Copper
Standard Finish	100% Bright Tin over Copper
Current Rating	7 Amperes
Feeder System	Standard 16mm Tape Feeder for Taped Parts
Pieces Per Reel (loose Part No.)	NA
Pieces Per Reel (taped Part No.)	/
Pieces Per Reel (small Reel Part No.)	/
Datenblatt	Download Datenblatt

Article Number	1279T-SR
Extra Description	Mating pin size is 1,57-1,68 mm
Mating Pin Size	0.062–0.066" (1.57–1.68mm) Diameter Round Pins
Material Thickness / Type	0.005"(0.13mm) C17200 Beryllium Copper
Standard Finish	100% Bright Tin over Copper
Current Rating	7 Amperes
Feeder System	Standard 16mm Tape Feeder for Taped Parts
Pieces Per Reel (loose Part No.)	/
Pieces Per Reel (taped Part No.)	/
Pieces Per Reel (small Reel Part No.)	100
Datenblatt	Download Datenblatt

Article Number	1279T
Extra Description	Mating pin size is 1,57-1,68 mm
Mating Pin Size	0.062–0.066" (1.57–1.68mm) Diameter Round Pins
Material Thickness / Type	0.005"(0.13mm) C17200 Beryllium Copper
Standard Finish	100% Bright Tin over Copper
Current Rating	7 Amperes
Feeder System	Standard 16mm Tape Feeder for Taped Parts
Pieces Per Reel (loose Part No.)	/
Pieces Per Reel (taped Part No.)	2200
Pieces Per Reel (small Reel Part No.)	/
Datenblatt	Download Datenblatt

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
