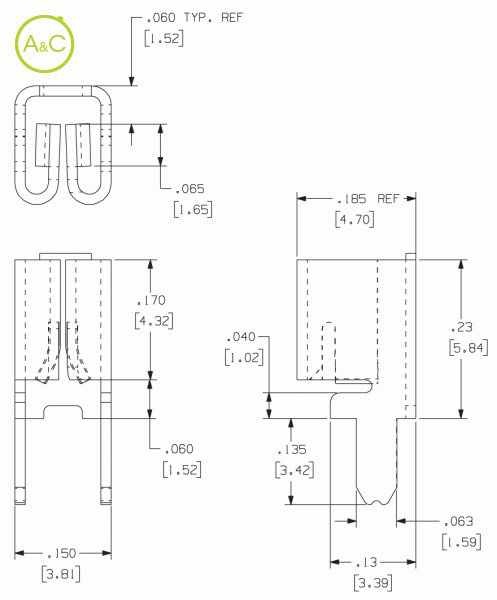

Universal Tab Receptacles for 0.025" (0.64mm) and 0.032" (0.81mm) Thick Terminals

  • Mating entry bottom and horizontal
  • Mounting type is Inward or Outward Splay

Packaging

  • Loose
  • Reeled
Article Number 1288
Extra Description Mounting type is Inward or Outward Splay
Mating Terminal Size 0.015" (0.38mm) and 0.025" (0.64mm)
Material Thickness / Type 0.016" (0.41mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating 20 Amperes
Applicator System Loose: ZPT81-1092 Reeled: Model 9700, 9700 XY
Mating Type Bottom and Horizontal
Mounting Type Inward or Outward Splay
Mounting Hole Diameter 2 holes 0.066" ±0.003" (1.68mm ±0.76mm ) on 0.134" ±0.003" (3.40mm ±0.76mm) centers
Resistance Rating 10mOhm Max
Temperature Rating -65° to 85°C
Pieces Per Reel (loose Part No.) NA
Pieces Per Reel (reeled Part No.) /
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
