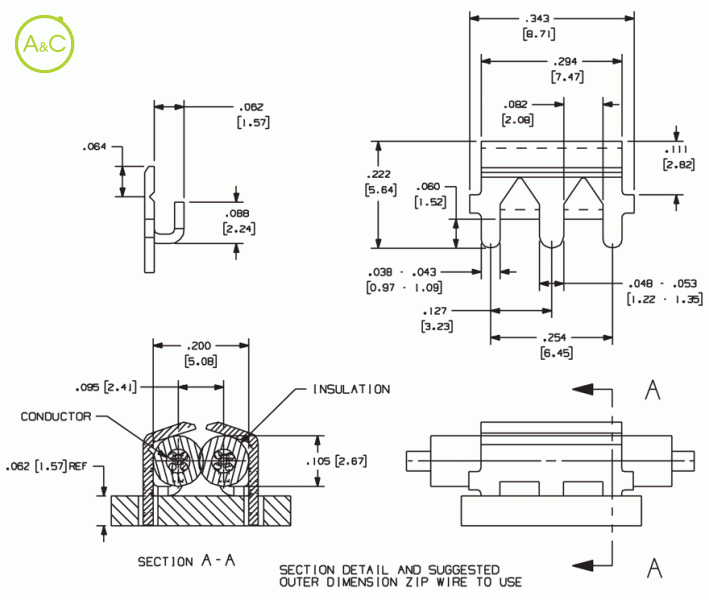

SMT / THT Zip Cord Connectors

Packaging

  • Loose
  • Reeled
  • Taped
Article Number 1302 1302-2-HDR
Material Thickness / Type .020 (0,51 mm) C26000 Brass .020 (0,51 mm) C26000 Brass
Standard Finish Pre-finished 100% Matte Tin over Copper. Edges will be bare. Pre-finished 100% Matte Tin over Copper. Edges will be bare.
Feeder System SMT Feeder for Loose Piece Terminals Standard 16mm Tape Feeder SMT Feeder for Loose Piece Terminals Standard 16mm Tape Feeder
Crimping System MP-1000 Crimping Machine (for high volume applications) Versa-Crimp (for low volume applications) MP-1000 Crimping Machine (for high volume applications) Versa-Crimp (for low volume applications)
Wire Size Approximately .100" Thick x .200" Wide Approximately .100" Thick x .200" Wide
Pieces Per Reel (loose Part No.) NA NA
Pieces Per Reel (reeled Part No.) / /
Pieces Per Reel (taped Part No.) / /
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
