Plastic hoods black and metallized with screw locking

  • Hoods set packed in bag
Download Datenblatt

Number Of Poles

  • 9
  • 15
  • 25
  • 37
  • 50

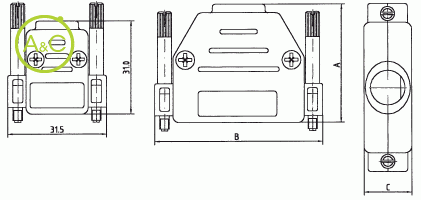

Article Number 17 09 0B 38 T 001 17 09 0M 38 T 001
Number Of Contacts 9 9
Upper Temperature +90 °C +90 °C
Lower Temperature -20 °C -20 °C
Plating Nickel plated copper Nickel plated copper
Thread UNC 4-40 UNC 4-40
Remark If you need coloured hoods please replace the B in the article number by R,Y,H,G or F If you need coloured hoods please replace the B in the article number by R,Y,H,G or F
Remark * Multi opening possible with 25-50P Multi opening possible with 25-50P
Material ABS UL 94-V0 ABS UL 94-V0
Extra Information Possibility to insert in 3 TE grid integrated anti-dust cover Possibility to insert in 3 TE grid integrated anti-dust cover
Hood Version black with 38 mm thumb screw Metalllized with 38 mm slotted screw
Colour* R= Red Y = Yellow H= Blue G = Grey F= Green R= Red Y = Yellow H= Blue G = Grey F= Green
Locking Style knurled screw knurled screw
Cable Exit Straight Angled 25-50p: 2x30°** Straight Angled 25-50p: 2x30°**
Cable Fixing Clamp intern (al) Clamp intern (al)
Cable Diameter Internal Cable Clamp 4-10 4-10
Material/surface Cover Screws ST Zinc plated ST Zinc plated
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
