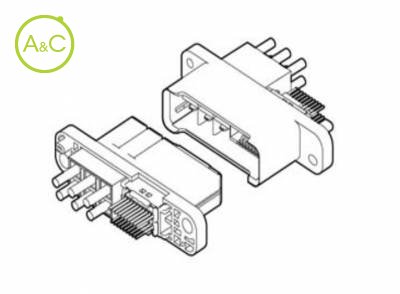

Receptacle for RWZ Connector L-Type

  • RWZ CONNECTOR L-Type
Download Datenblatt

Number Of Poles

  • 25
Article Number 19LR-RWZV-K2GG-R6
Number Of Contacts 25
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.5mm Pitch Disconnectable Crimp Style
Connection Type Wire to Wire Connectors
Pitch / Style 1.25 mm
Rated Current (ac/dc) Signl/1.0 Power/15 A
Rated Voltage (ac/dc) Signl/50 Power/250 V
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
This connector is a hybrid type double-row drawer connector combined signal and power supply circuits connector to connect the units. RWZ connector with lever locking device is adopted as applicable socket to prevent incomplete mating. Signal circuit 1.5mm pitch lever-locking type Hybrid type High durability Absorbed misalignment mechanism RoHS Compliant
