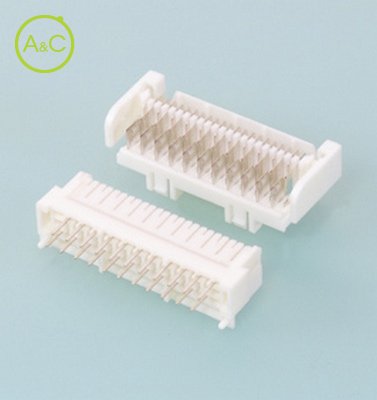

Plug for HQB Connector

  • HQB CONNECTOR
Download Datenblatt

Number Of Poles

  • 22
  • 24
  • 30
  • 36
Article Number 22P-HQBSS
Number Of Contacts 22
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.5mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.50 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Through-hole Technology (THT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

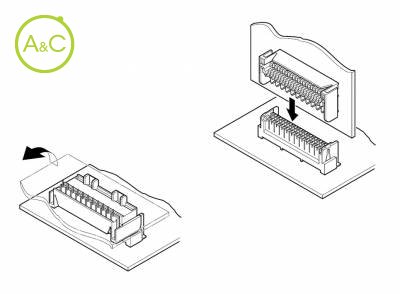

Hinge type board to board connectors which allow mated PCB's to move 90° in respect to one another while electricity is turned on. The hinge compensates for slight misalignments between circuit boards to assure a secure connection even if the boards are laterally out of line up to 0.5mm (.020"). Header leads are staggered for easy board design. Flexible connection by absorbing circuit board misalignment The hinge compensates for slight misalignments between circuit boards to assure a secure connection even if the boards are out of line up to 0.5mm (.020"). This design and circuit checks can be as easily made as opening a door. Hinged connection With hinge construction, the HQB connector features flexibility. Thus this board to board connector allows mated PCB's to move 90° in respect to one another while electricity is turned on. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
