Connector Normal Type

  • FXW CONNECTOR
Download Datenblatt

Number Of Poles

  • 25
  • 29
Article Number 25FXW-SM1-G-S-TB
Number Of Contacts 25
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.3mm Pitch ZIF Connector For FPC
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.30 mm
Rated Current (ac/dc) 0.2 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

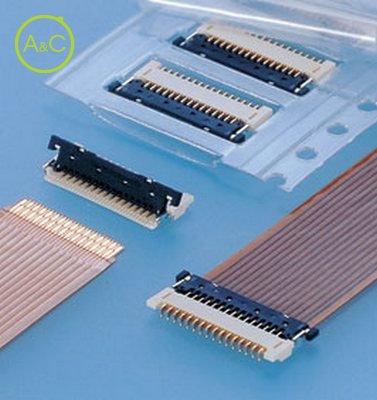

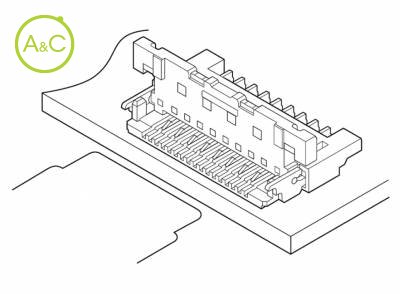

Diagram Enlarge Diagram This ultra low-profile FPC connector with a mounting height of 1.0mm (.039") has a Double ZIF Flip-lock slider structure. Ultra low-profile (1.0mm (.039") height) & adoption of Double ZIF structure This 1.0mm (.039") height ultra low-profile connector has been designed for the LDP module of mobile phones. The Double ZIF mechanism provides easier FPC insertion, excellent durability and effective protection from wearing. One-touch sliding operation of Molded Cover After closing the cover, it should be pressed to slide so that it will be securely held by the enforcement tab. This mechanism ensures that the cover remains closed even when the FPC is connected upwards. Heat resistant design for surface mounting It is designed for the reflowing process by using a heat resistant material for the housing. Standards UL Recognized E60389 RoHS Compliant
