Female Connector for FVXS Connector

  • FVXS CONNECTOR
Download Datenblatt

Number Of Poles

  • 39
  • 51
  • 61
Article Number 39FVXS-RSM1-GAN-TF
Number Of Contacts 39
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.2mm Pitch ZIF Connector for FPC
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.20 mm
Rated Current (ac/dc) 0.2 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

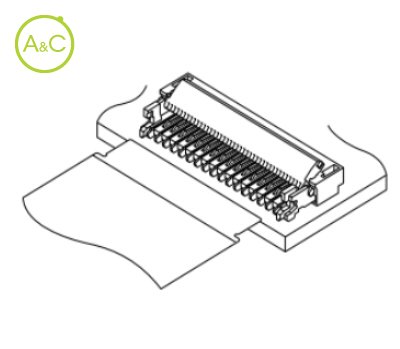

0.2mmm pitch FVXS connector for FPC has been developed for small portable equipment for which low profile and miniaturization are required. Positioning of FPC is easily conducted by inserting FPC into connector until its shoulder touches to the transverse U-shape groove. This connector also has the structure that tension due to handling of FPC is absorbed by socket and reinforcing tab. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
