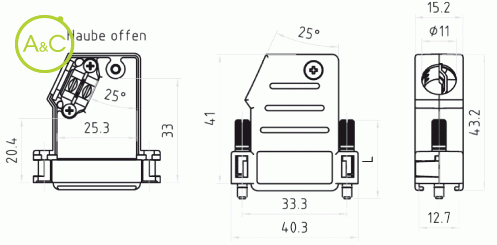

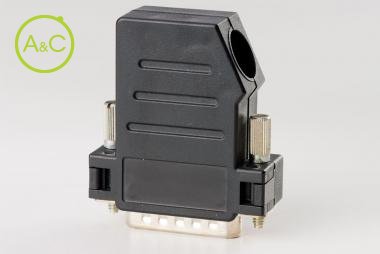

Compact D-Sub plastic hood for mixed layout connectors and standard use

  • Hoods as seperate parts in plastic bag
Download Datenblatt

Thread

  • M3
  • UNC 4-40
Article Number 47 15 5B 25 T 000 47 15 5M 25 T 000
Cable Diameter Range 5-11 mm 5-11 mm
Number Of Contacts 15 15
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Cable Diameter 5-11 mm 5-11 mm
Material ABS UL 94-V0 ABS UL 94-V0
Colour Black Black
Hood Version black with 25 mm knurled screw Metallized with 25 mm knurled screw
Locking Style knurled screw knurled screw
Cable Exit Angled 1x25° Angled 1x25°
Starting Torque Max. 35 Ncm Max. 35 Ncm
Metallization Nickel plated Nickel plated
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
KT KB
Cable bushing for series 17,47
KT MB
Cable bushing for series 17,47
KT GB
Cable bushing for series 17,47
KK 33 B
Cable bushings
KK 43 B
Cable bushings
KK 53 B
Cable bushings
KK 33 M
Cable bushings
KK 43 M
Cable bushings
KK 53 M
Cable bushings
KG 35 B
Cable bushings
KG 50 B
Cable bushings
KG 63 B
Cable bushings
KG 76 B
Cable bushings
KG 83 B
Cable bushings
KG 90 B
Cable bushings
KG 35 M
Cable bushings
KG 50 M
Cable bushings
KG 63 M
Cable bushings
KG 76 M
Cable bushings
KG 83 M
Cable bushings
KG 90 M
Cable bushings
KL 103 B
Cable bushings
KL 93 B
Cable bushings
KL 93 M
Cable bushings
KL 103 M
Cable bushings
