Plug

  • JDF CONNECTOR
Download Datenblatt

Number Of Poles

  • 55
Article Number 55PS-JDFK-SM-G
Number Of Contacts 55
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.5mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.50 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT) Through-hole Technology (THT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

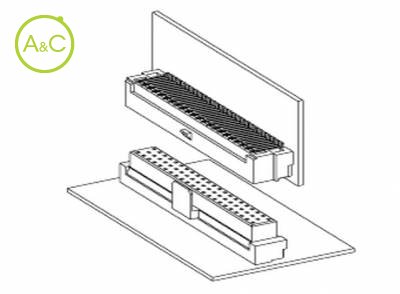

This 1.5mm (.059") pitch board-to-board connector has achieved further miniaturization in width by adopting a triple row structure. The connector is also equipped with a floating mechanism which absorbs misplacement when mounted to the board and misalignment when assembled. Flexible structure The floating structure of the receptacle means that it has a separate structure of upper and bottom part in order to absorb misplacement of the component of up to 0.5mm ( .020") both horizontally and vertically when mounted to the board and misalignment when assembled. Highly reliable connection Reliable connection is ensured by adopting a secure locking system and applying gold plating on the contact part. Mounting type Plug: SMT type Receptacle: Through-hole type Standards UL Recognized E60389 RoHS Compliant
