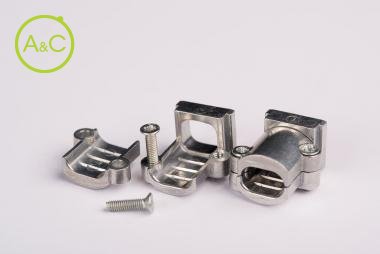

Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC

Download Datenblatt

Number Of Poles Of Hoods

  • 9-37

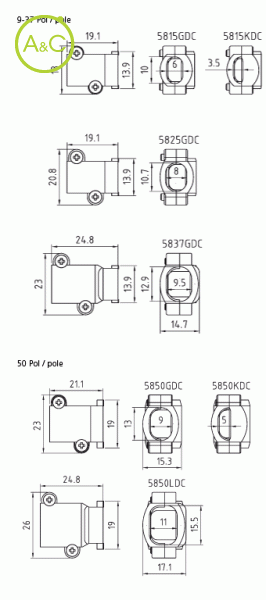

Article Number 5815GDC 5815KDC 5825GDC 5837GDC
Cable Diameter Range 4-14 mm 4-14 mm 4-14 mm 4-14 mm
Number Of Contacts 9-37 9-37 9-37 9-37
Cable Diameter 4-7 mm 7-10 mm 9-12 mm 11-14 mm
Windows For Wires 65 65 75 85
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
