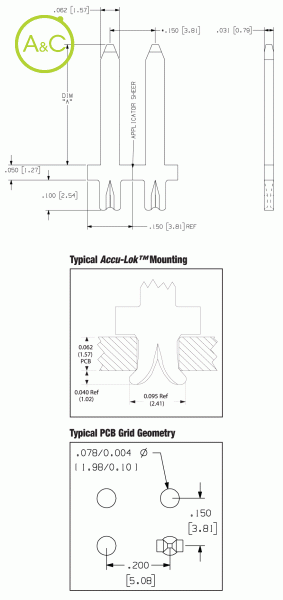

0.031" x 0.062" (0.79mm x 1.57mm)

Dimension "a"

  • 0.350"
  • 0.400"
  • 0.490"
  • 0.615"
  • Customer request

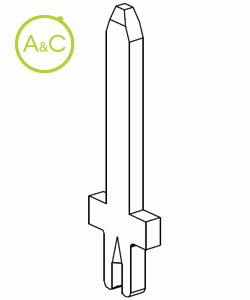

Article Number 6073-350
Packaging Reeled
Dim A 0.350" (8.89mm)
Material Thickness / Type 0.032" (0.81mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating 10 Amperes
Applicator System Model 9700, 9700 XY
Mounting Type Split Leg Splay
Mounting Hole Diameter 0.078" (1.98mm)
Pieces Per Reel (reeled Part No.) /
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
