Receptacle with Polarizing Key

  • JMD CONNECTOR
Download Datenblatt

Number Of Poles

  • 60
Article Number 60R-JMDHS-GAN-1A-TF(SA)
Number Of Contacts 60
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.5mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.50 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

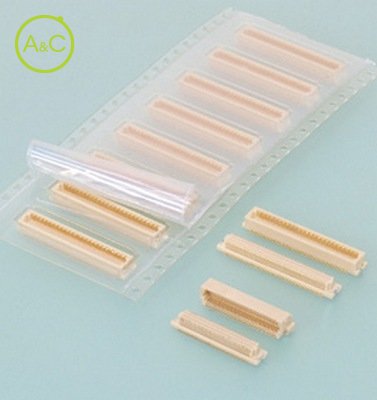

Box-shaped plug housing has guide ribs on both ends, which prevents distortion. No. of circuits available are from 20 to 100, every 10 circuits. Smooth connection Thanks to the cantilever type contacts, mating is very smooth Distortion preventive construction Box-shaped plug housing has guide ribs on both ends, which prevents distortion. Wide range of circuits No.of circuits available are from 20 to 100, every 10 circuiits. Embossed taping for automatic mounting This connector is supplied in embossed tape packaging, for mounting by automatic placement machines. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
