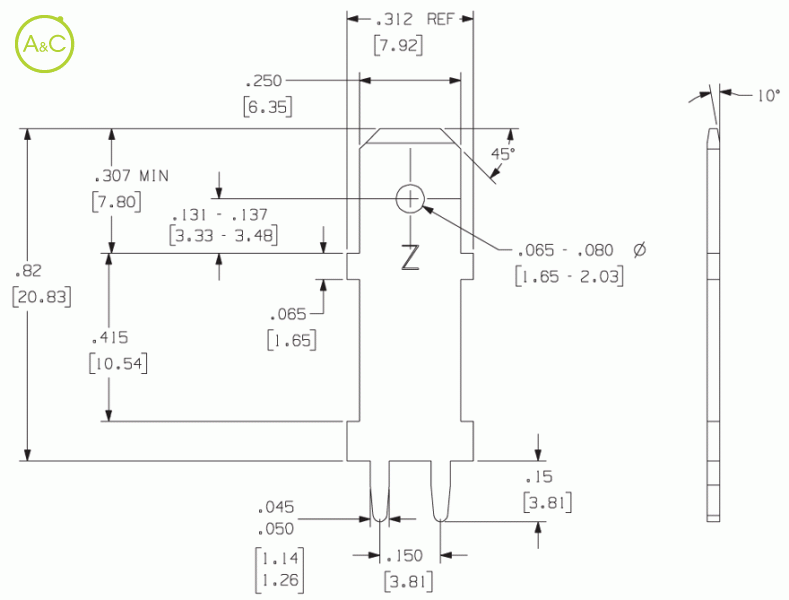

0.250" (6.35mm) Tabs / Quick Disconnect Terminals

  • Straight, 24.64 mm high
  • General
Article Number 6110
Packaging Reeled
Extra Description Straight, 24.64 mm high
Material Thickness / Type 0.032" (0.81mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating Ul 20 Amperes
Current Rating C-ul 20 Amperes
Ul File Number E146208
Applicator System Model 9700, 9700 XY
Mounting Type Outward Splay
Mounting Hole Diameter 0.058" ±0.003" (1.47mm ±0.076mm)
Pieces Per Reel (reeled Part No.) 12500
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
