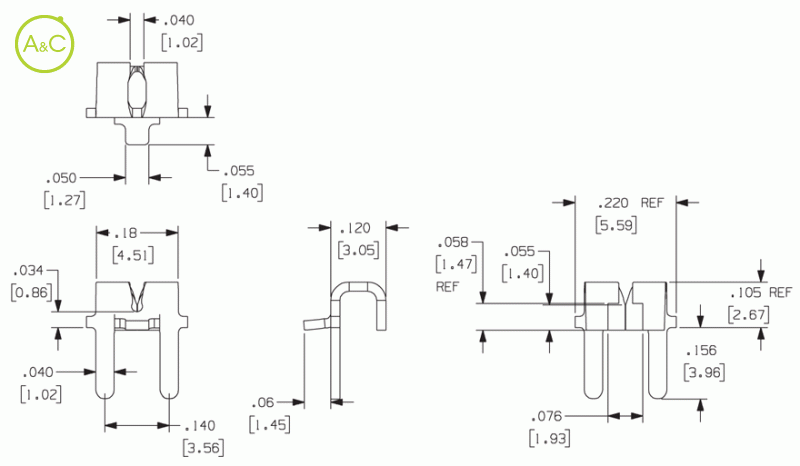

IDC (Insulation Displacement Connector) For #30-26 AWG Wire

  • With 2 holes
  • General
Article Number 6114
Packaging Reeled
Extra Description With 2 holes
Material Thickness / Type 0.020" (0.51mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating 10 Amperes
Applicator System Loose: ZPT-1114 Reeled: Model 9700, 9700 XY Wire Termination: Consult factory.
Mounting Type Outward or Inward Splay Surface Mount Solder 0.062" (1.57mm) thick PCB
Mounting Hole Diameter 2 holes 0.050" ±0.003" (1.27mm ±0.076mm) on 0.140" (3.56mm) centers
Wire Gauge Range #30-26 AWG
Pieces Per Reel (reeled Part No.) 6500
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
