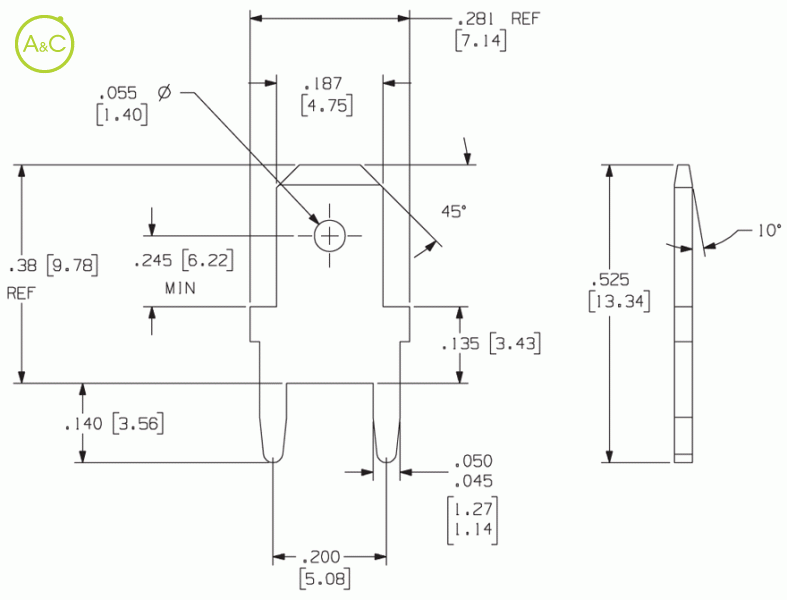

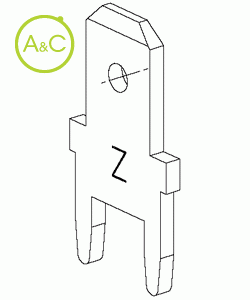

0.187" (4.75mm) Tabs / Quick Disconnect Terminals

  • Straight, 13.34 mm high

Material Tickness

  • 0.020" (0.51 mm
  • 0.032" (0.81mm)
Article Number 6134
Packaging Reeled
Extra Description Straight, 13.34 mm high
Material Thickness / Type 0.020" (0.51mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating Ul 20 Amperes
Current Rating C-ul 20 Amperes
Applicator System Model 9700, 9700 XY
Mounting Type Outward or Inward Splay
Mounting Hole Diameter 0.050" ±0.003" (1.27mm ±0.076mm)
Pieces Per Reel (reeled Part No.) 7000
Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
