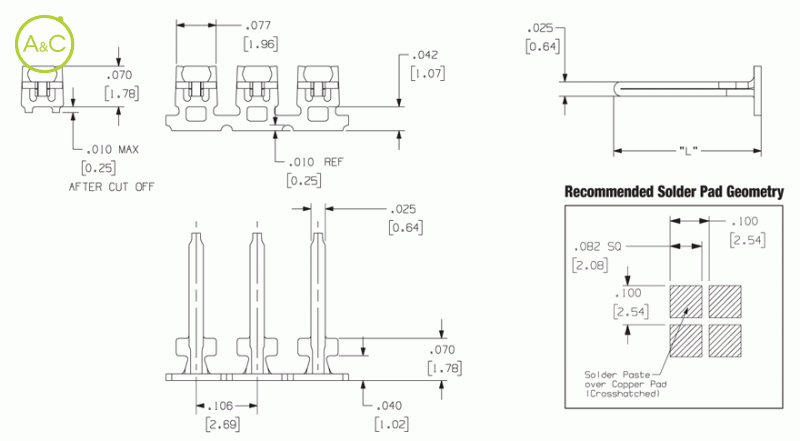

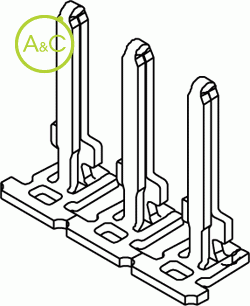

SMT 0.025" (0,635 mm) Posts

  • With shoulder

Packaging

  • Reeled
Article Number 6239 6240
Extra Description With shoulder With shoulder
Pin Length (l) 0.250" (6.35mm) 0.375" (9.53mm)
Material Thickness / Type 0.012" (0.30mm) C26000 Brass 0.012" (0.30mm) C26000 Brass
Standard Finish 100% Tin over Copper 100% Tin over Copper
Current Rating 8 Amperes 8 Amperes
Feeder System Surf-Shooter SMT ™ Continuous Strip Feeder Surf-Shooter SMT ™ Continuous Strip Feeder
Pieces Per Reel (reeled Part No.) 9000 9000
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
