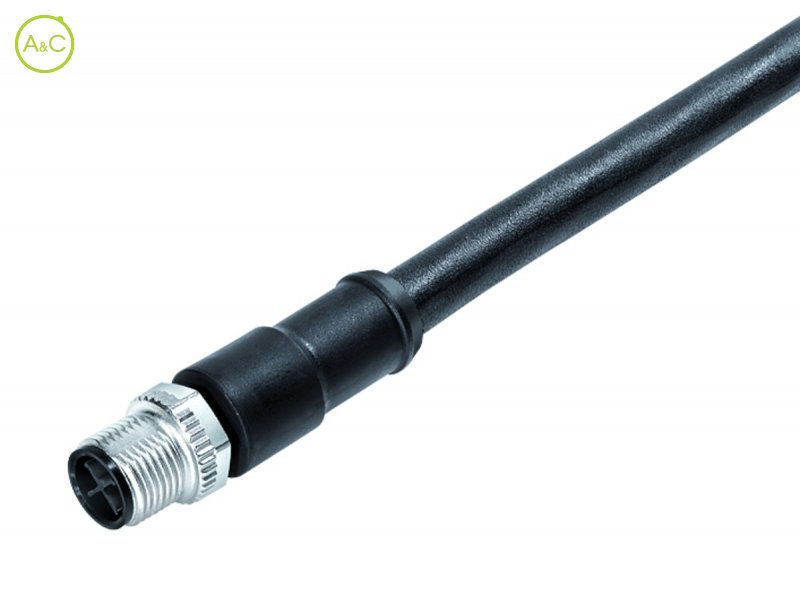

Male cable connector

  • Moulded,PUR
  • UL-approval

Number Of Poles

  • 3+PE
Article Number 77 0689 0000 50704 0200 77 0689 0000 50704 0500
Color Black Black
Connector Diameter 14.5 mm 14.5 mm
Number Of Contacts 3+PE contacts 3+PE contacts
Connector Locking System Screw(M12-S) Screw(M12-S)
Termination Removable screw Removable screw
Wire Section 1.5 mm² 1.5 mm²
Protection Degree IP67 IP67
Mating Cycles >50 times >50 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 630 630
Rated Impuls Voltage 6000 V 6000 V
Pollution Degree 3 3
Overvoltage Categorie III III
Material Group III III
Rated Current (40°) 12 A 12 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Wire Gauge 16 AWG 16 AWG
Material Housing Of Cable PUR PUR
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
